Public Park Pavilion

Boring, OR

King Post Pavilion

PROJECT SUMMARY:

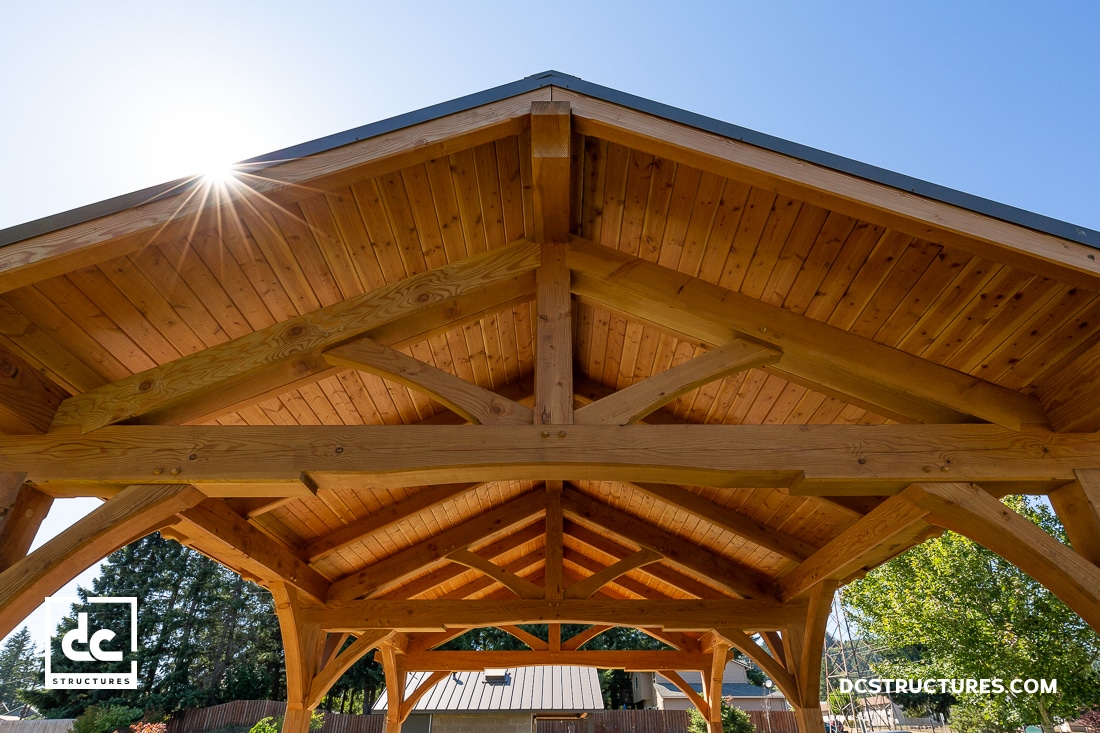

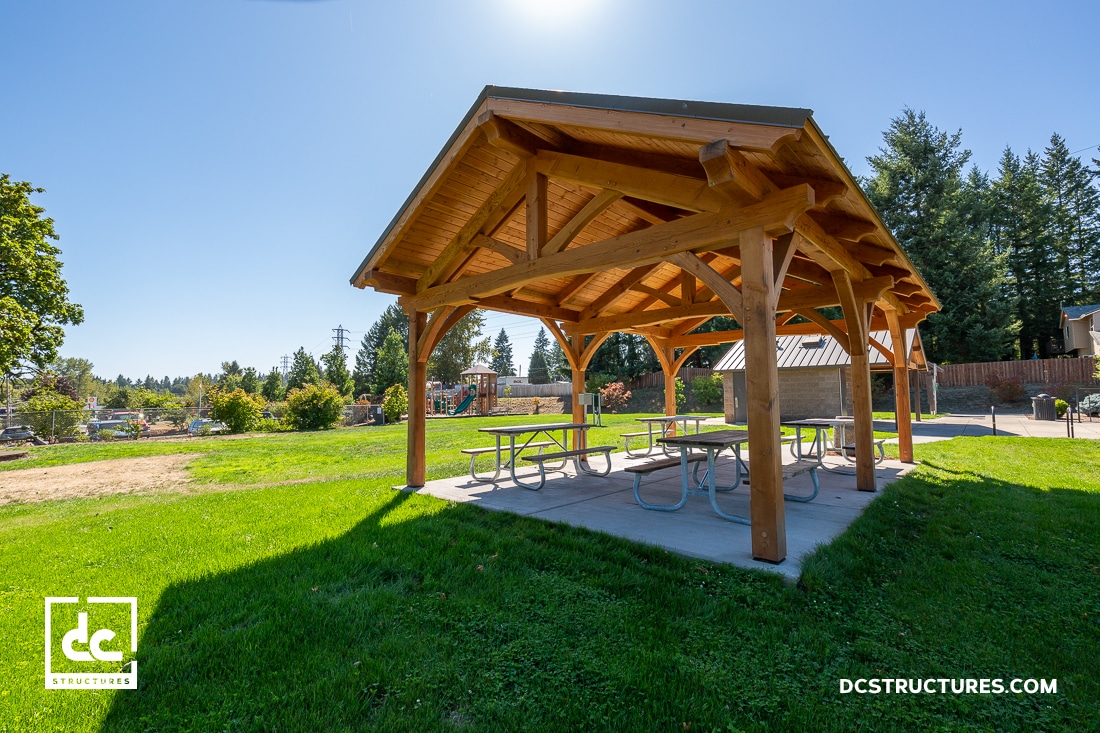

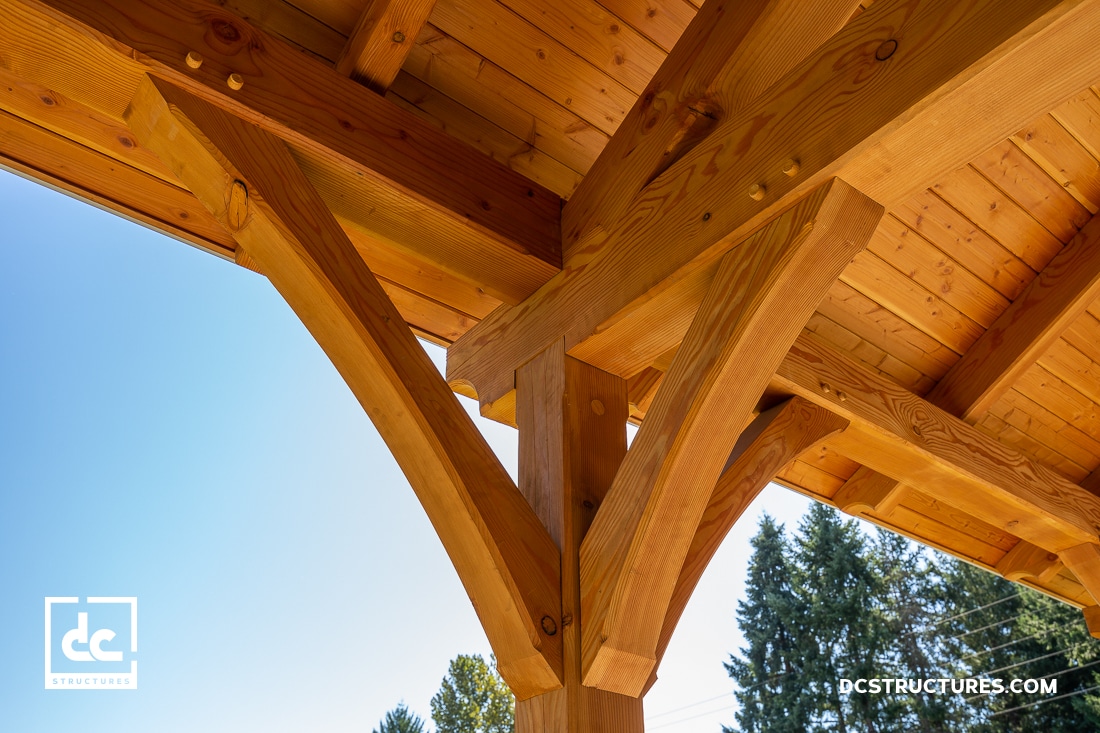

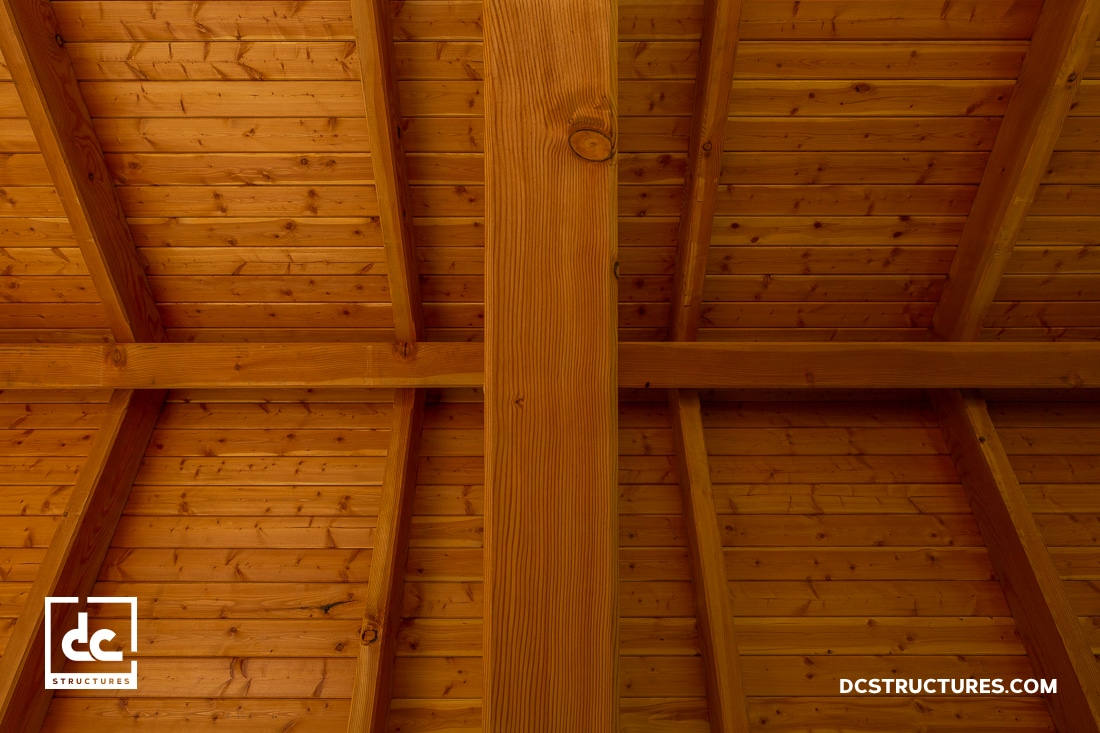

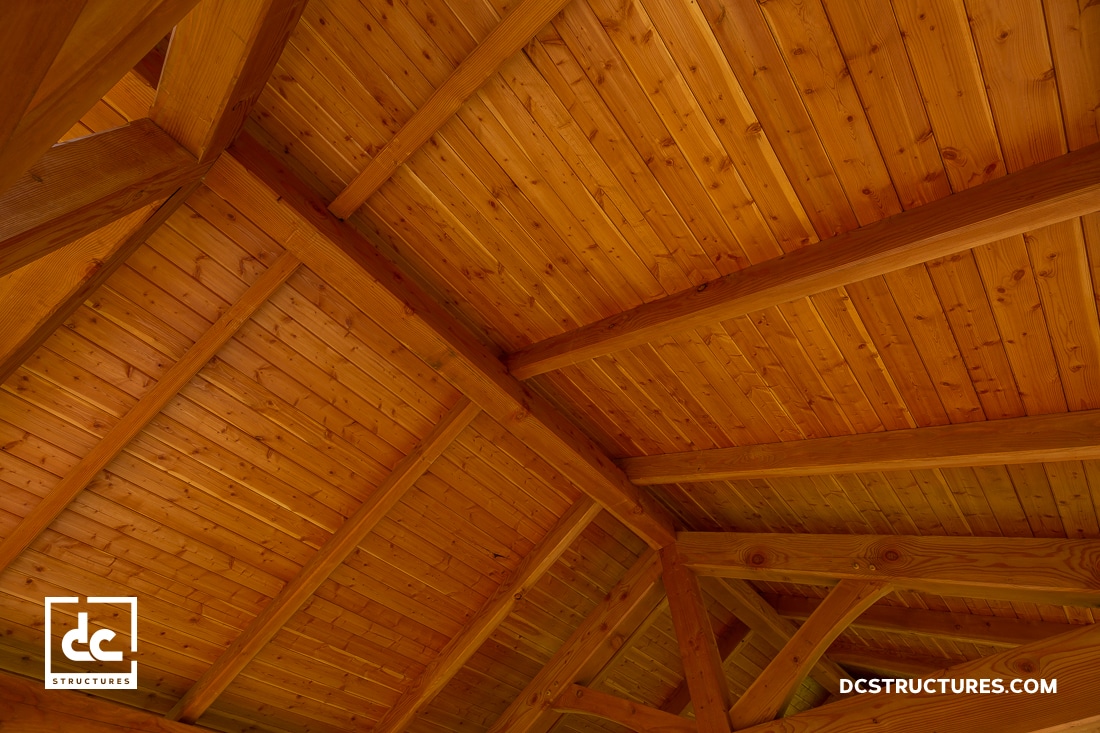

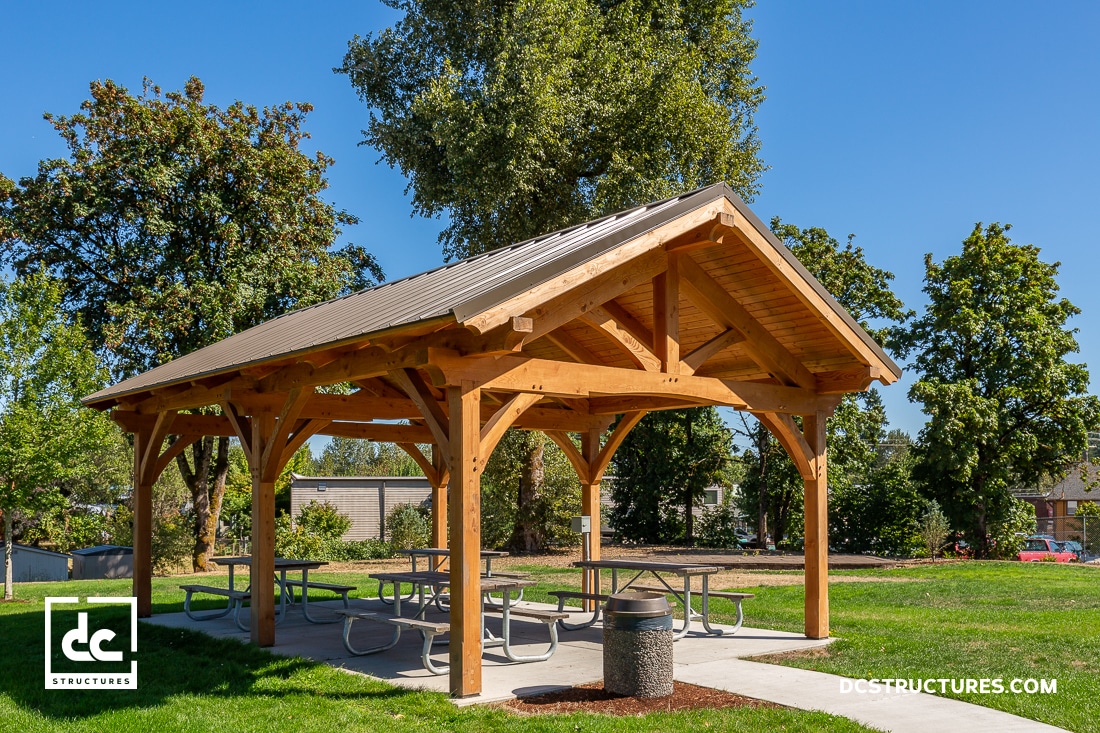

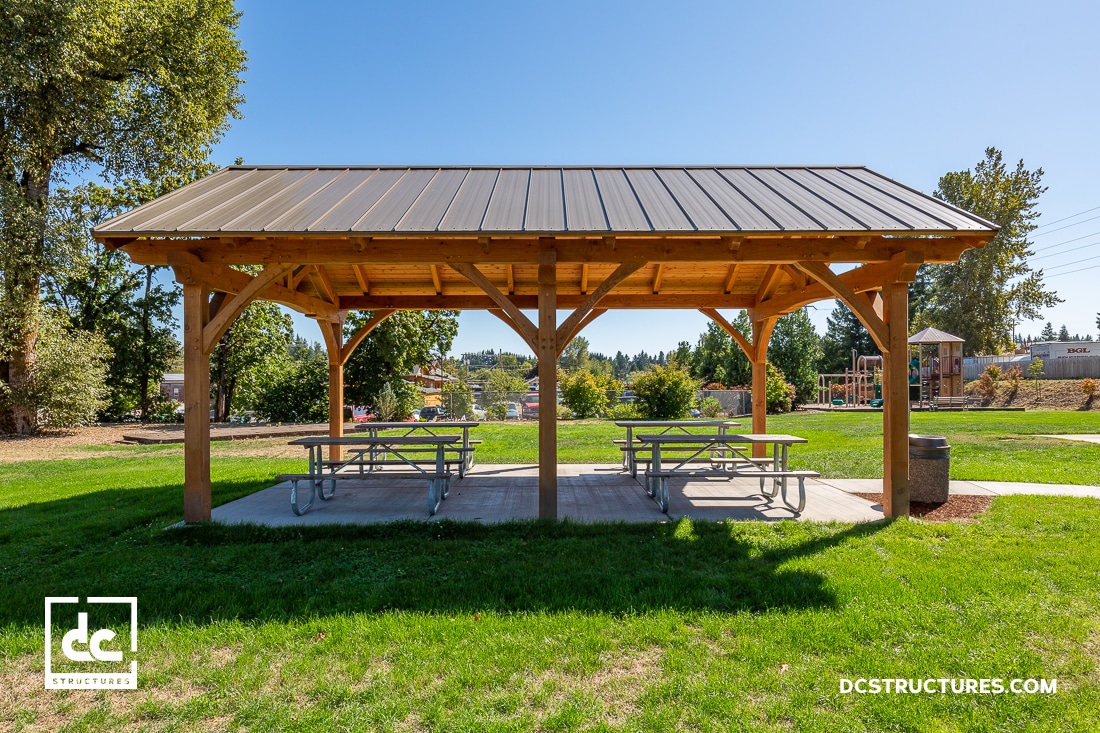

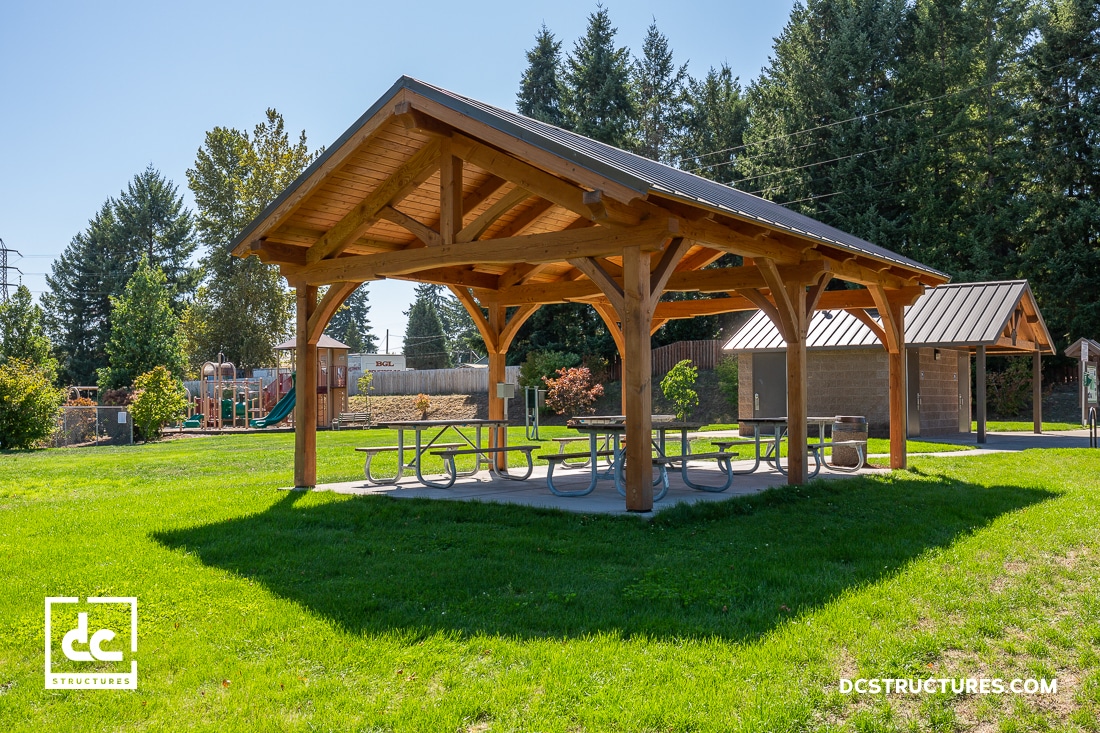

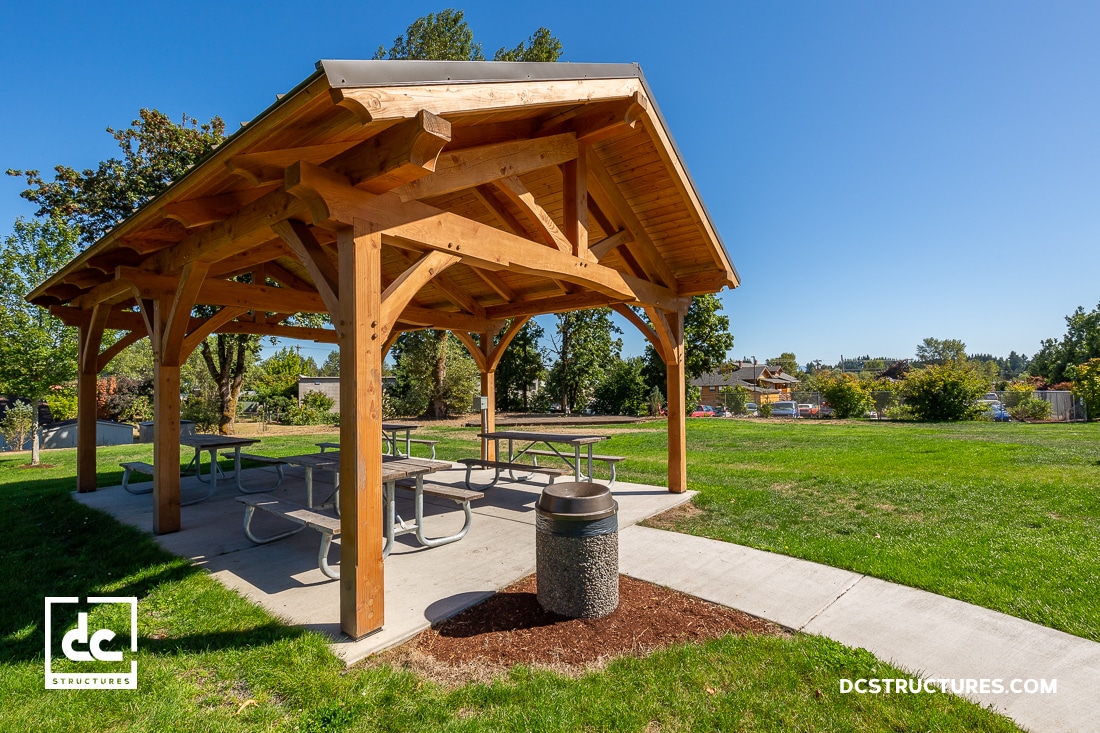

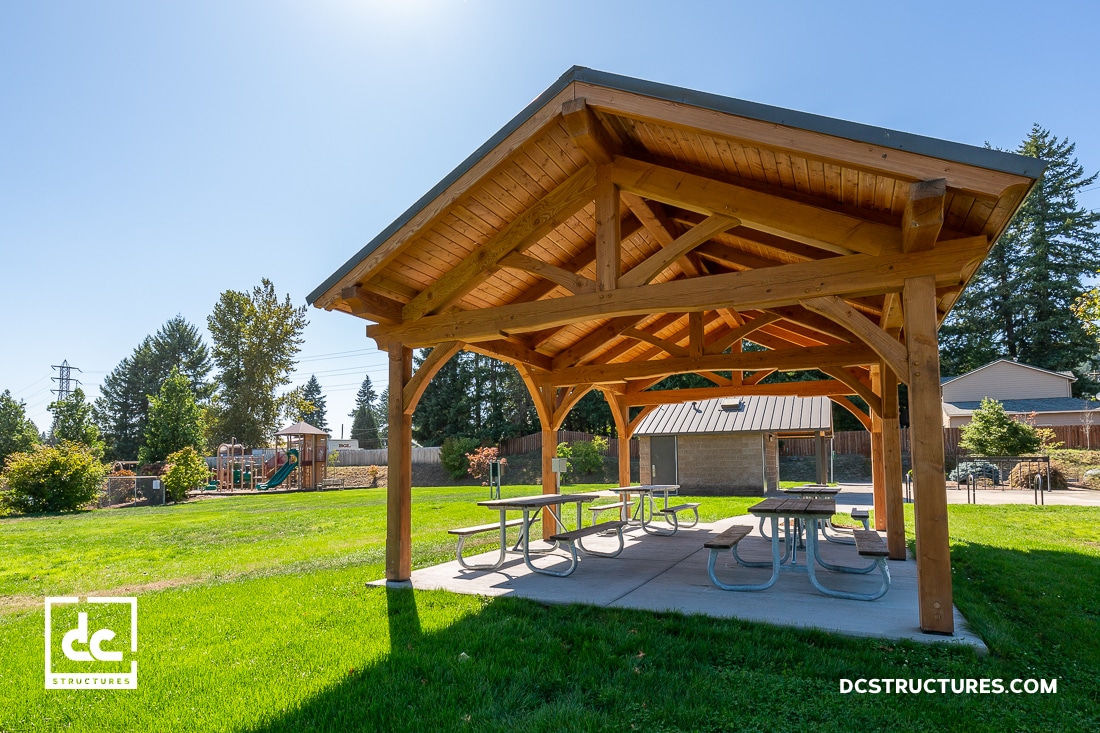

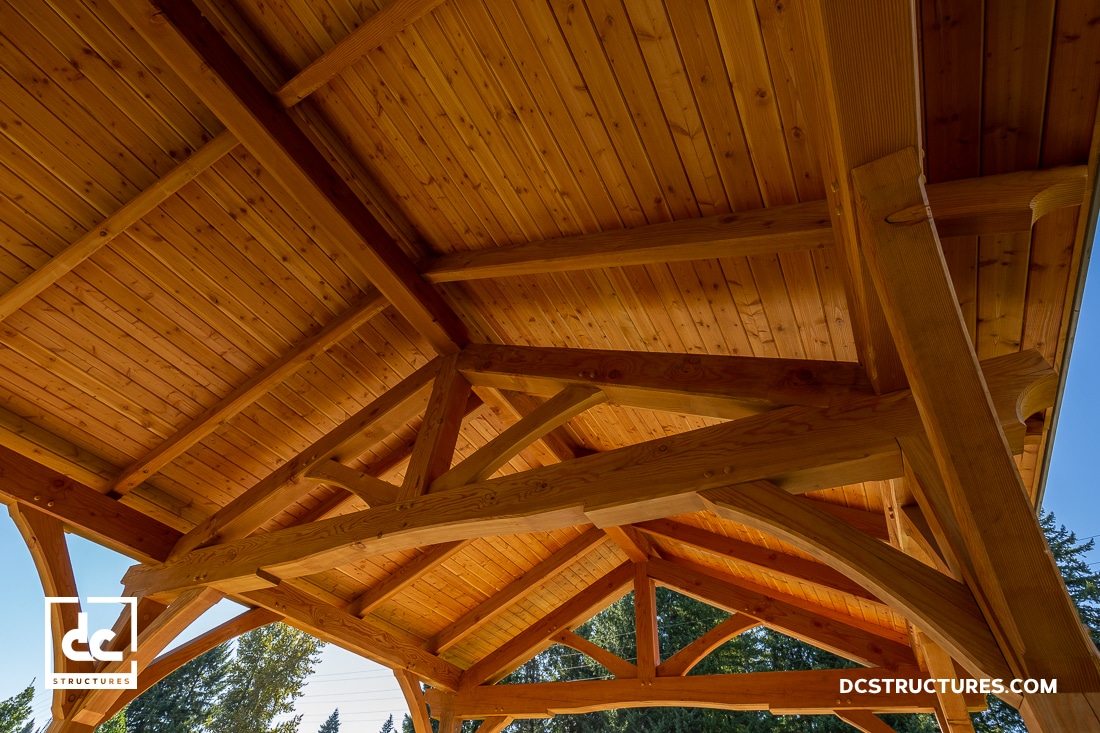

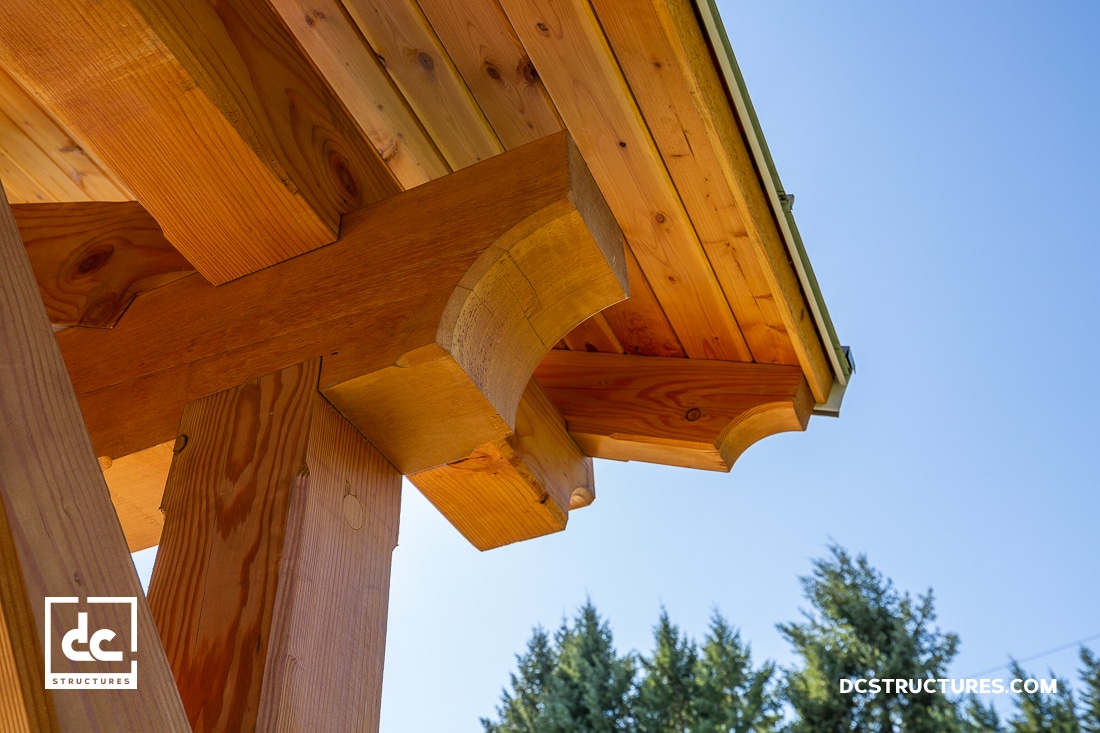

This customized king post-style pavilion is the centerpiece of a public park in Boring, Oregon. This pavilion features three 16′ heavy timber trusses, sturdy 8″ x 8″ Douglas fir posts, mortise and tenon connections and a tongue and groove wood ceiling. Concealed, countersunk knife plates provide a safe and attractive connection to the foundation.

PROJECT DETAILS:

16′ x 24′ PAVILION

  • 384 SQ. FT.
  • King Post Style

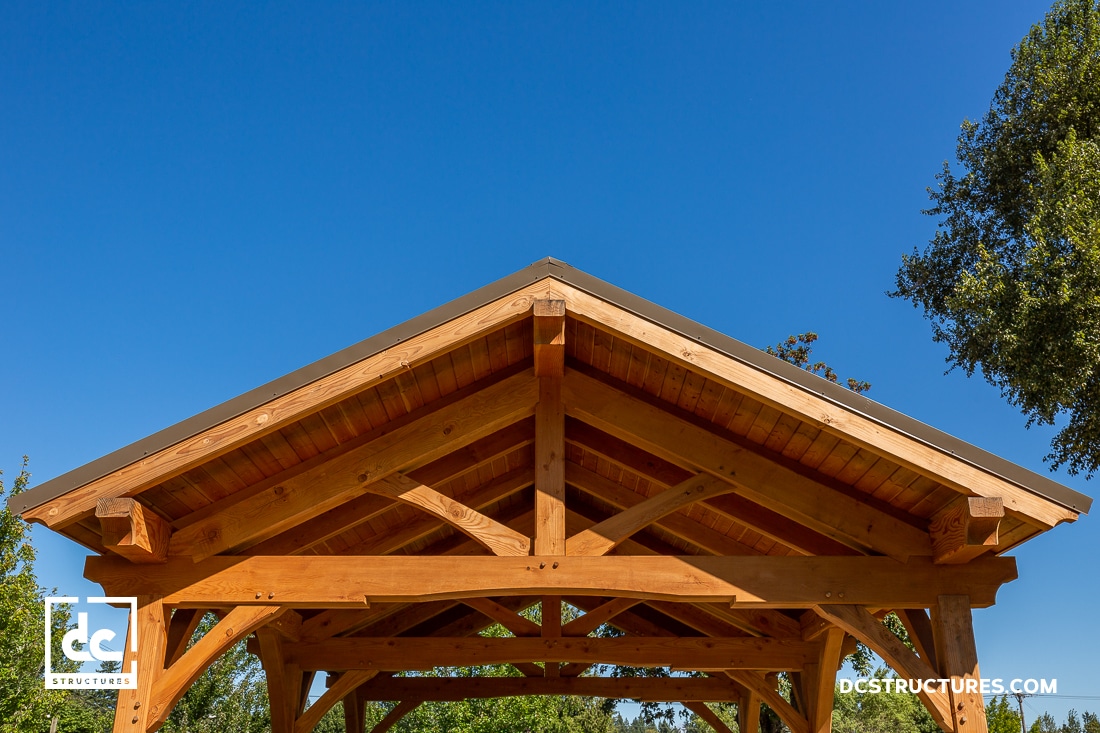

  • (3) 16′ Trusses
  • Concealed Knife Plates

STRUCTURAL DETAILS

  • 6/12 Roof Pitch
  • 8″ x 8″ Posts
  • 14′ 5″ Ridge Height

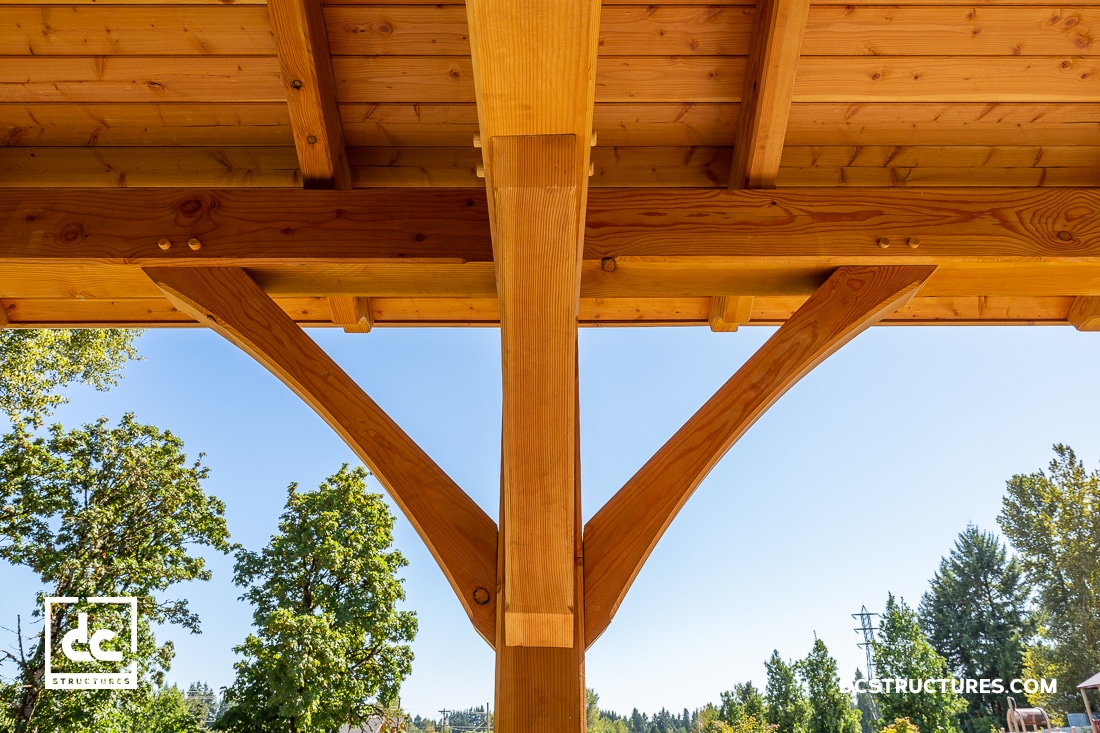

  • (14) Knee Braces
pic
