Upstate Pavilion

Broadalbin, NY

Queen Post Pavilion

PROJECT SUMMARY:

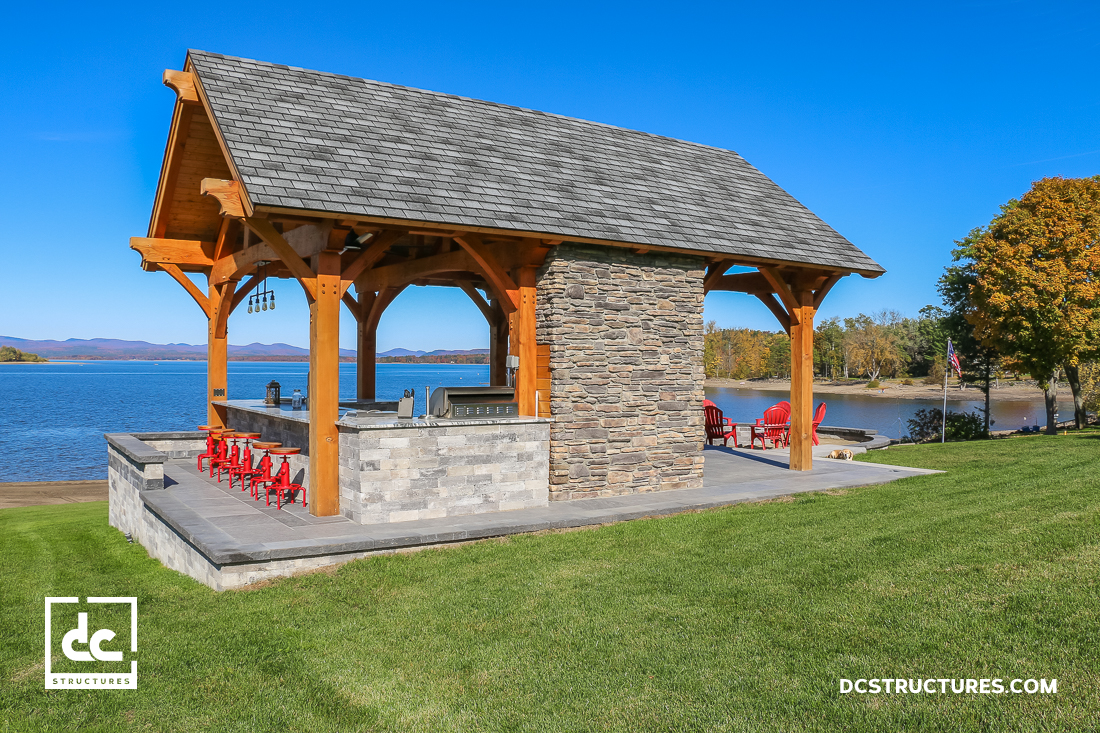

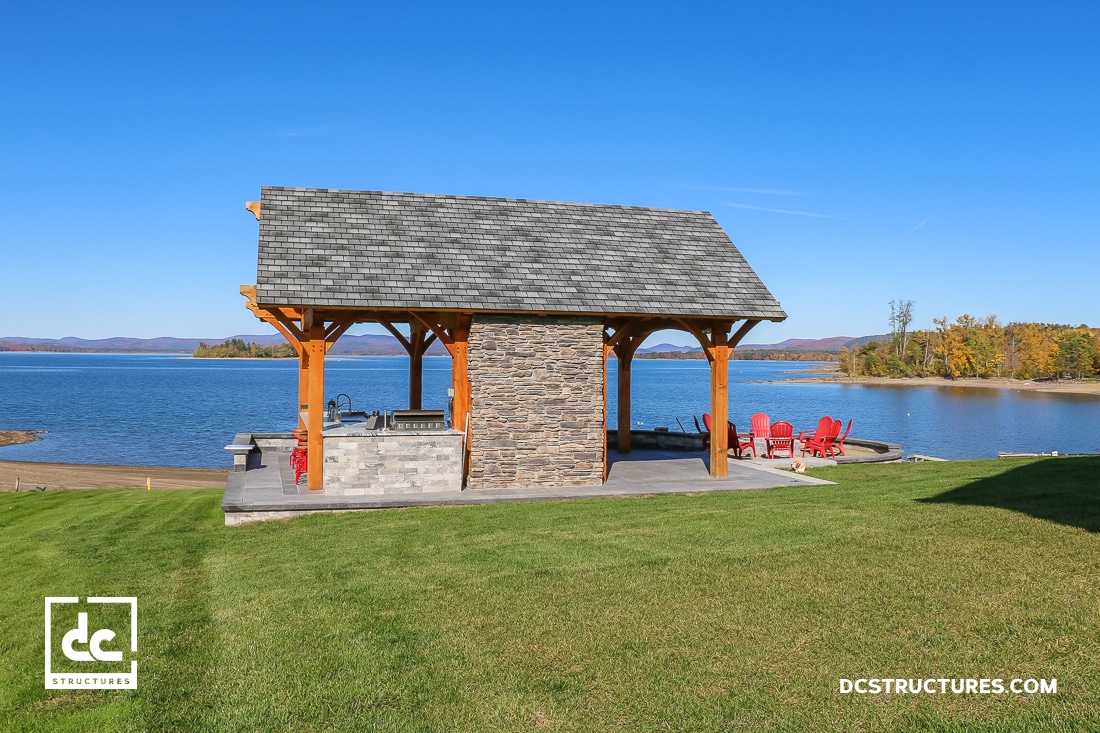

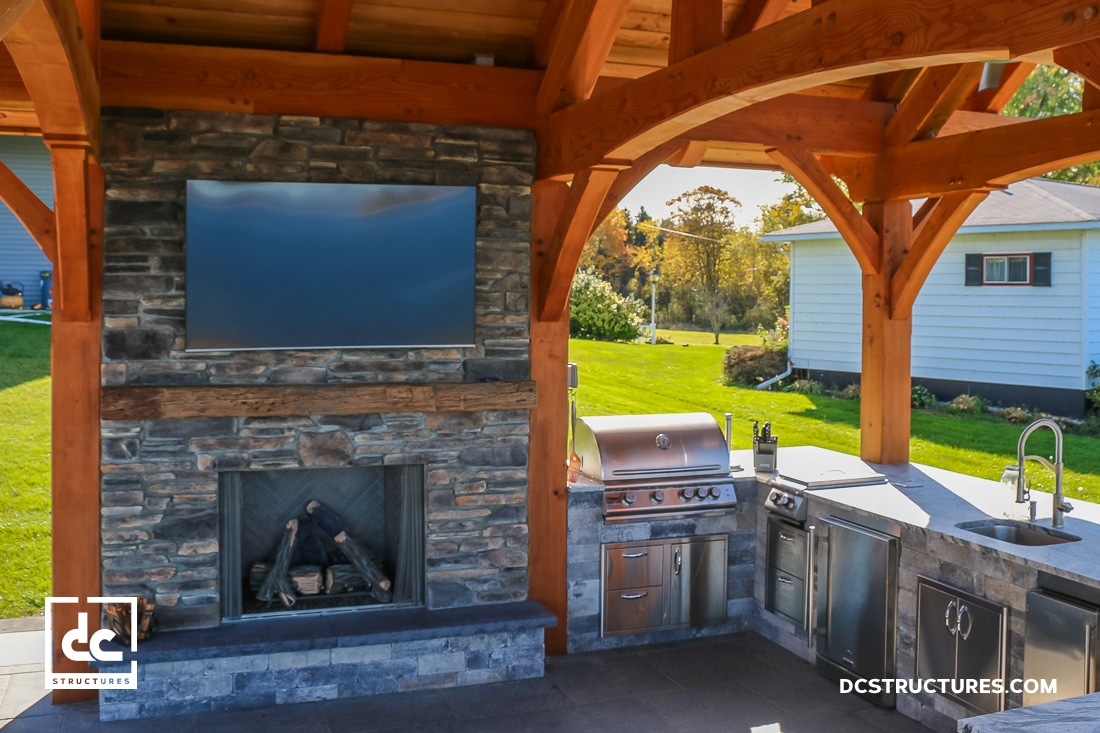

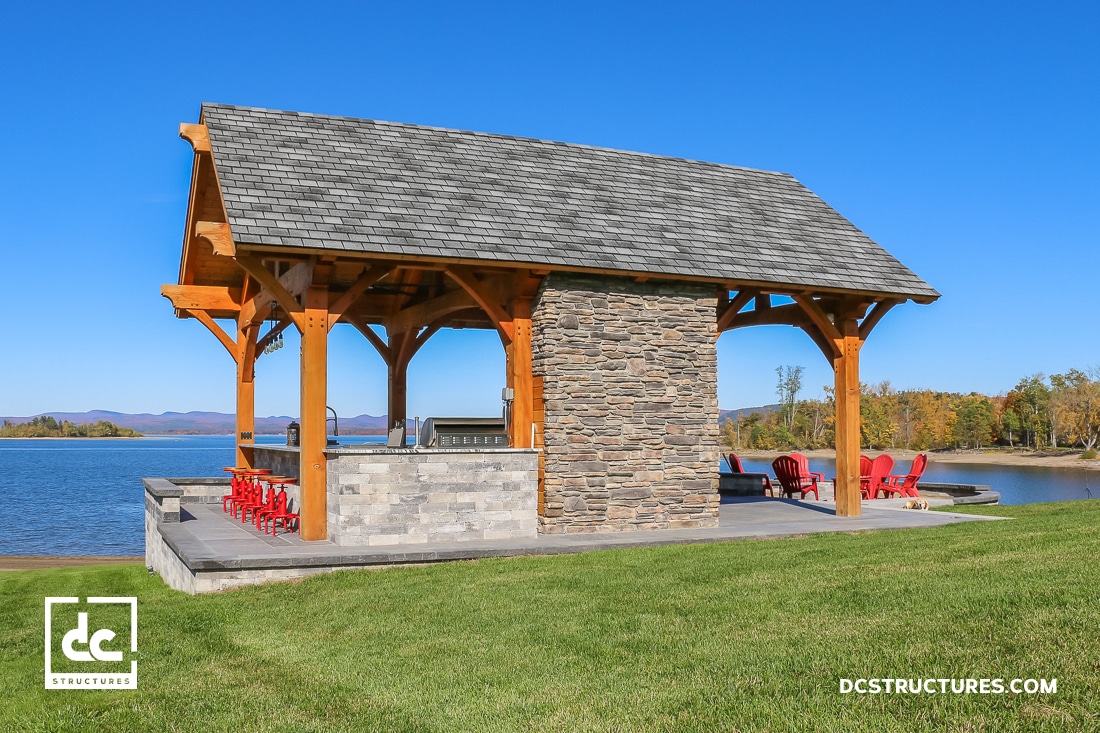

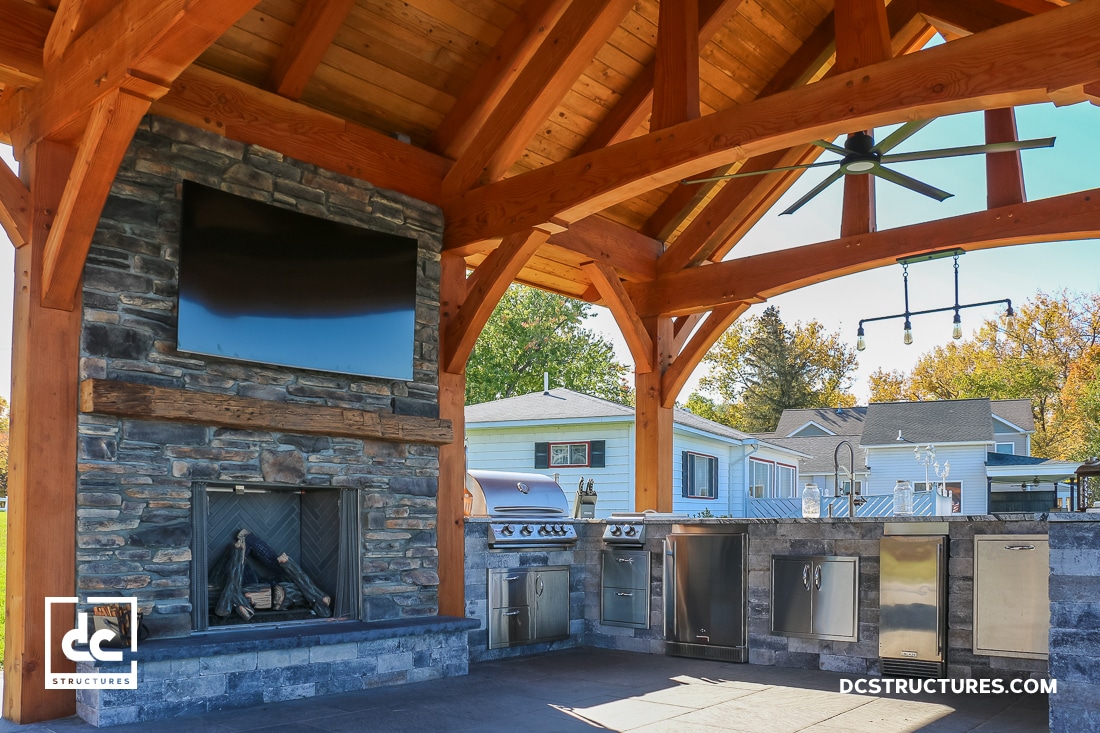

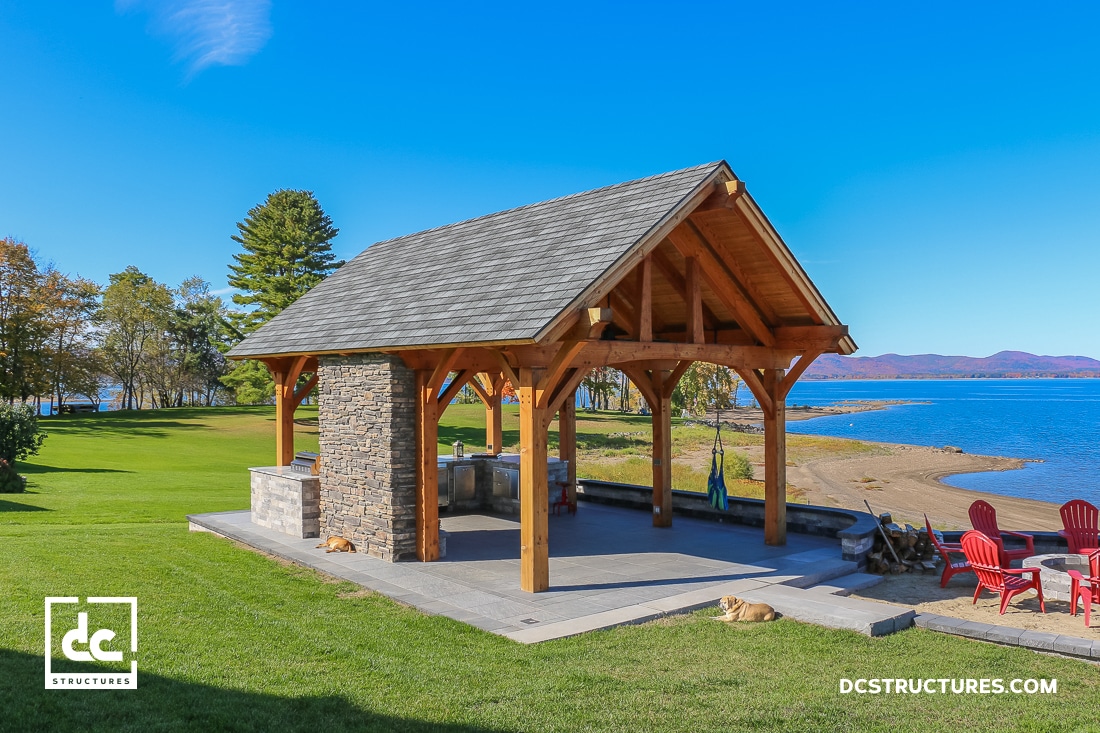

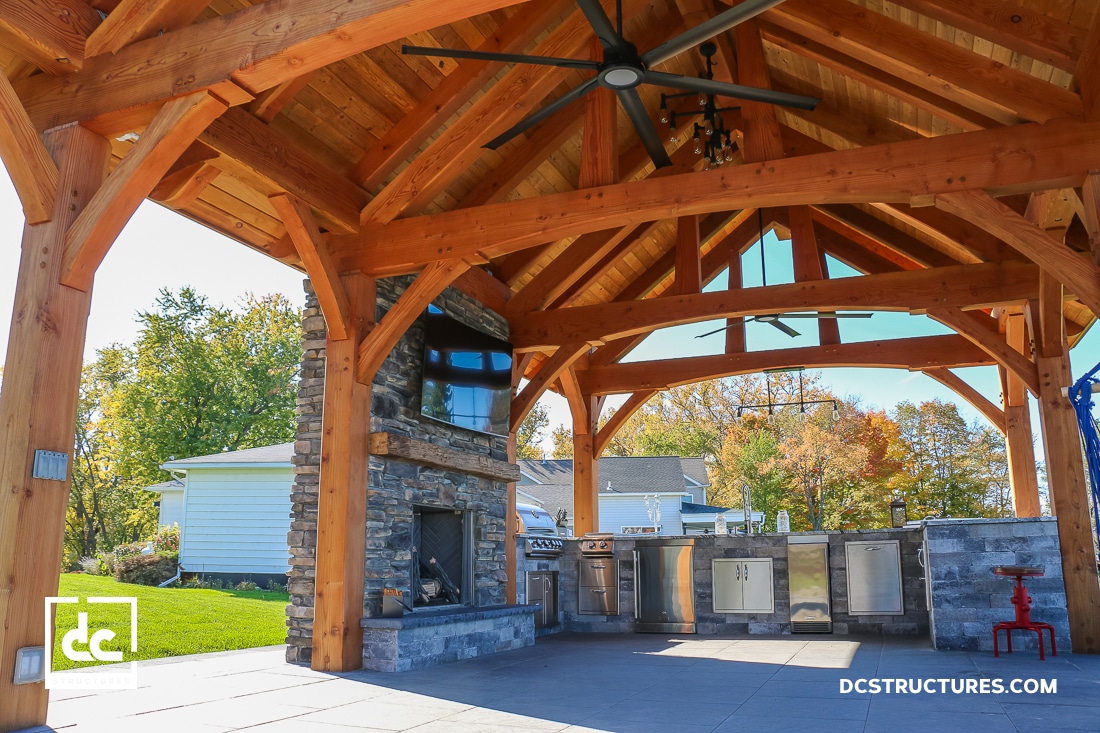

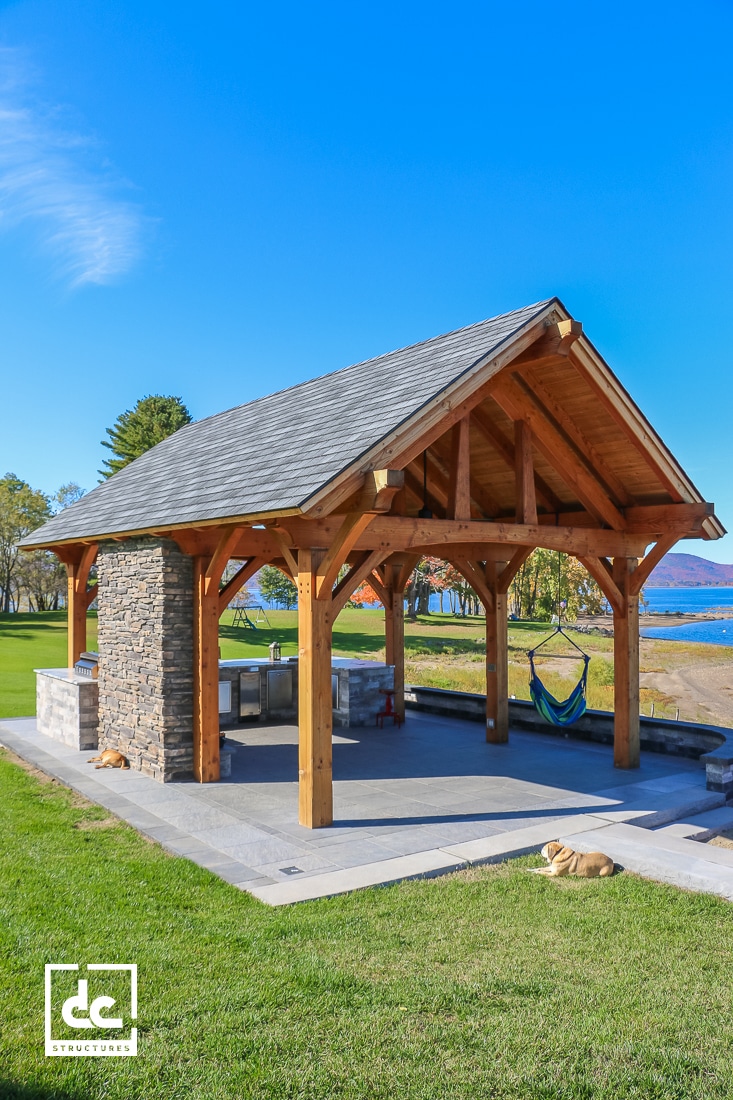

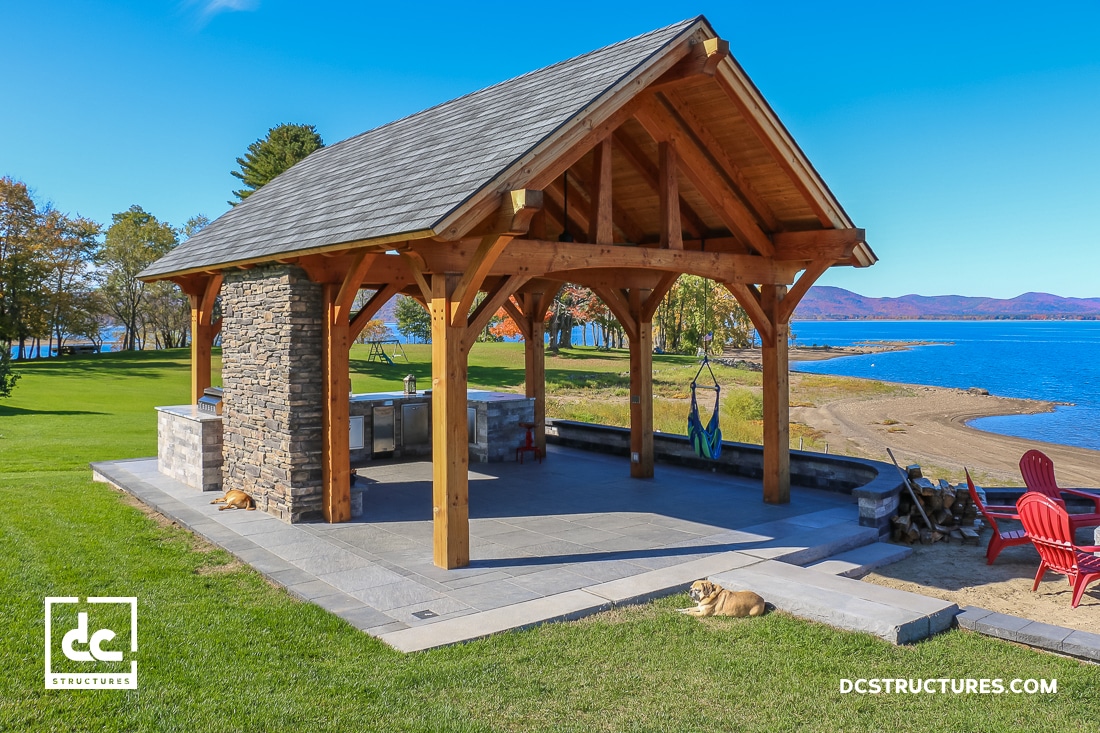

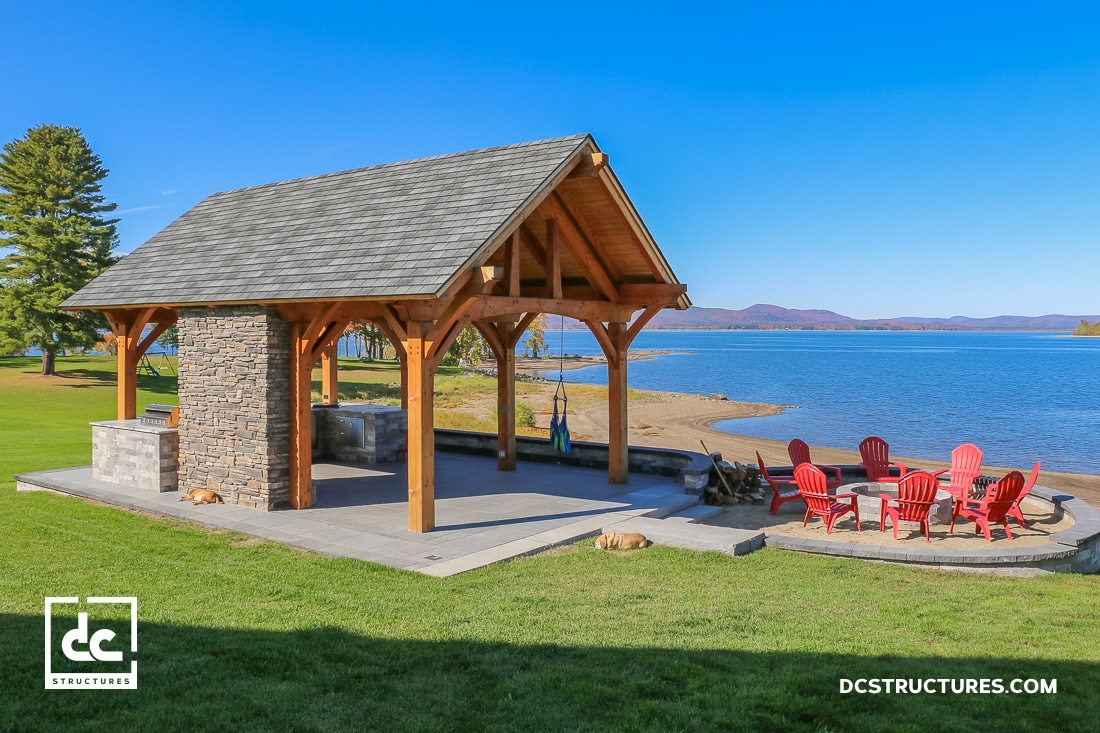

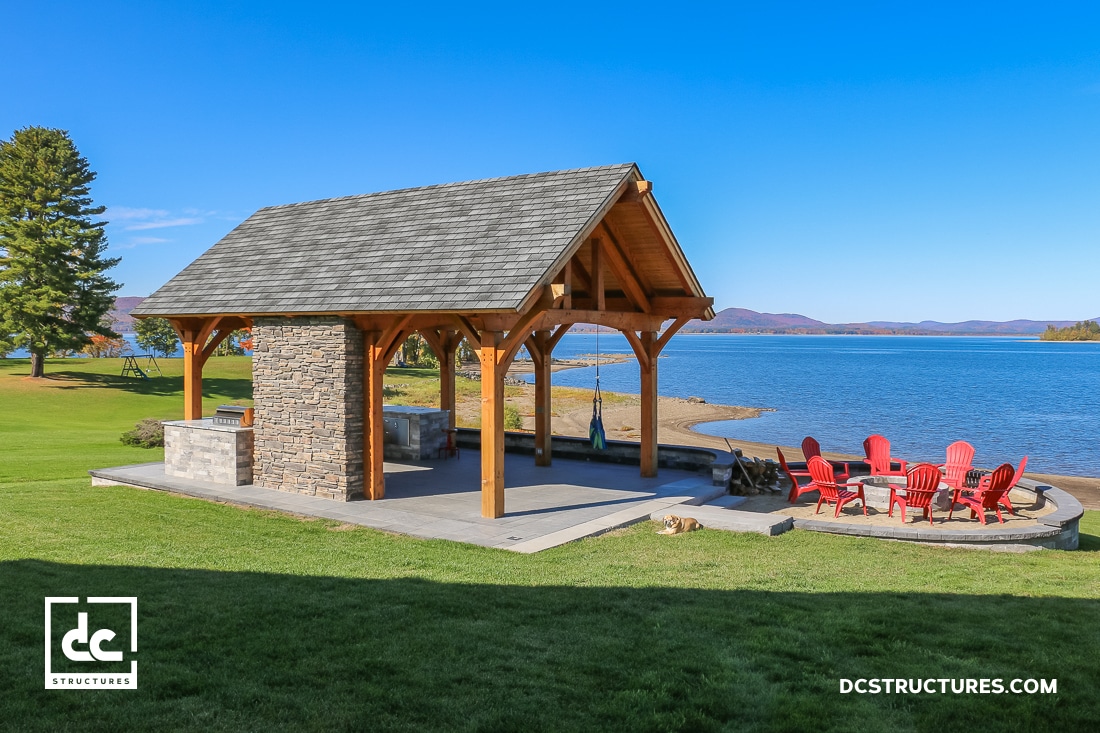

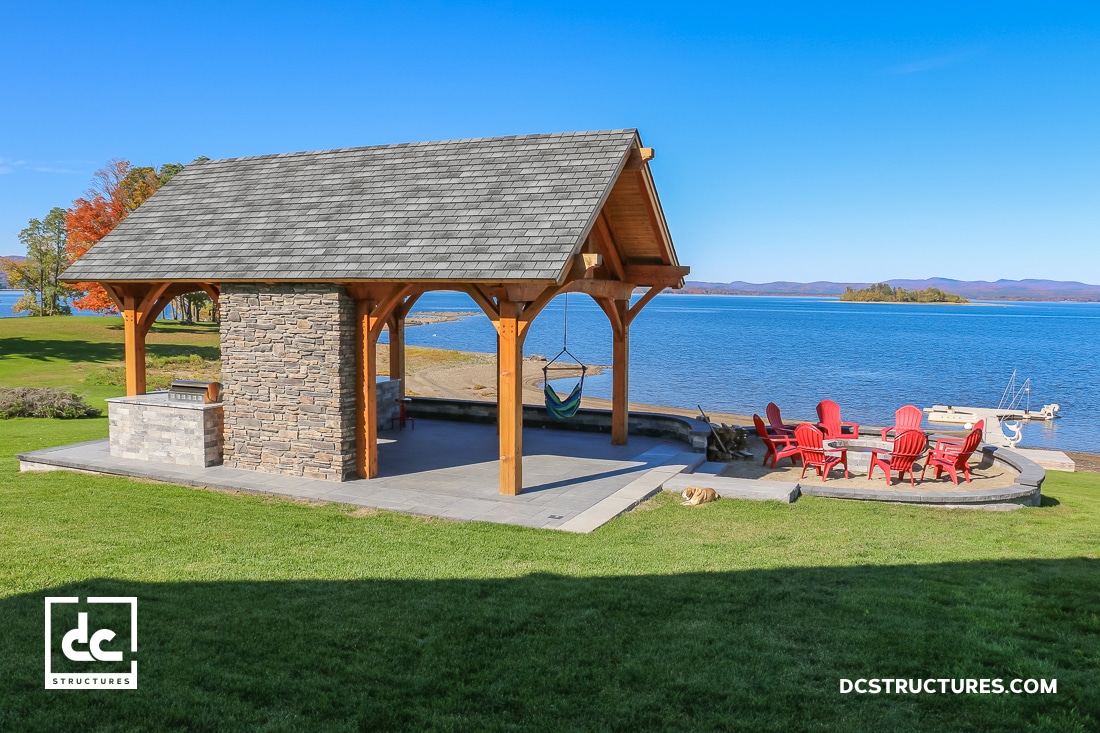

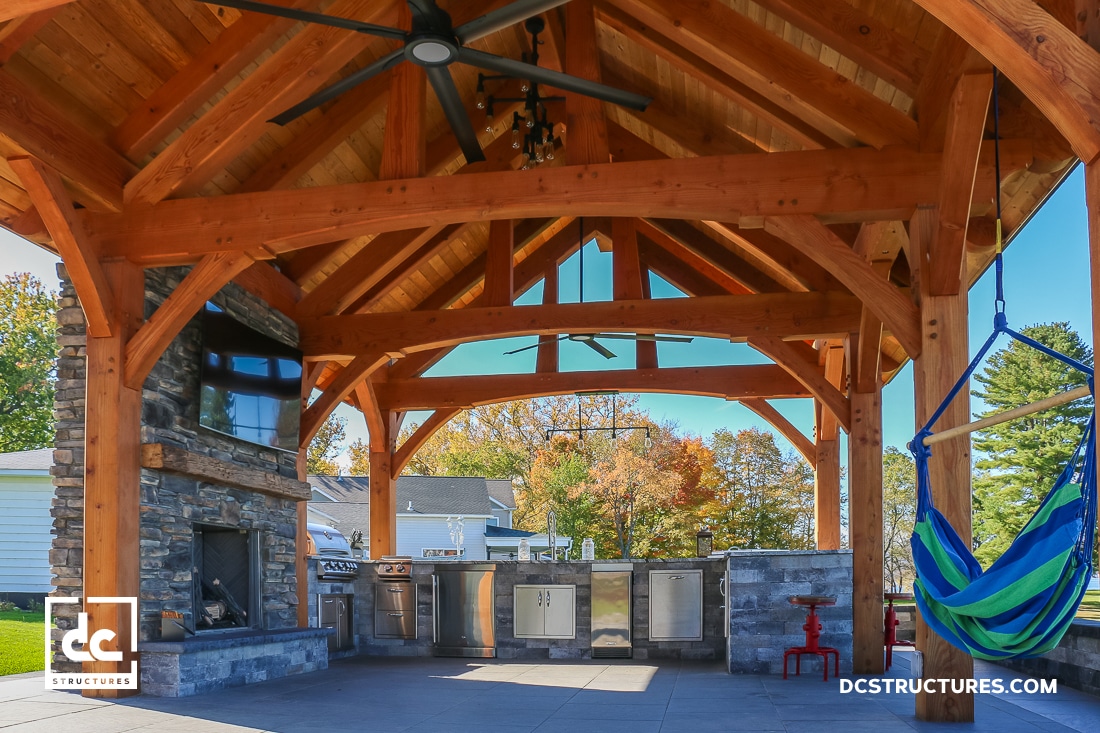

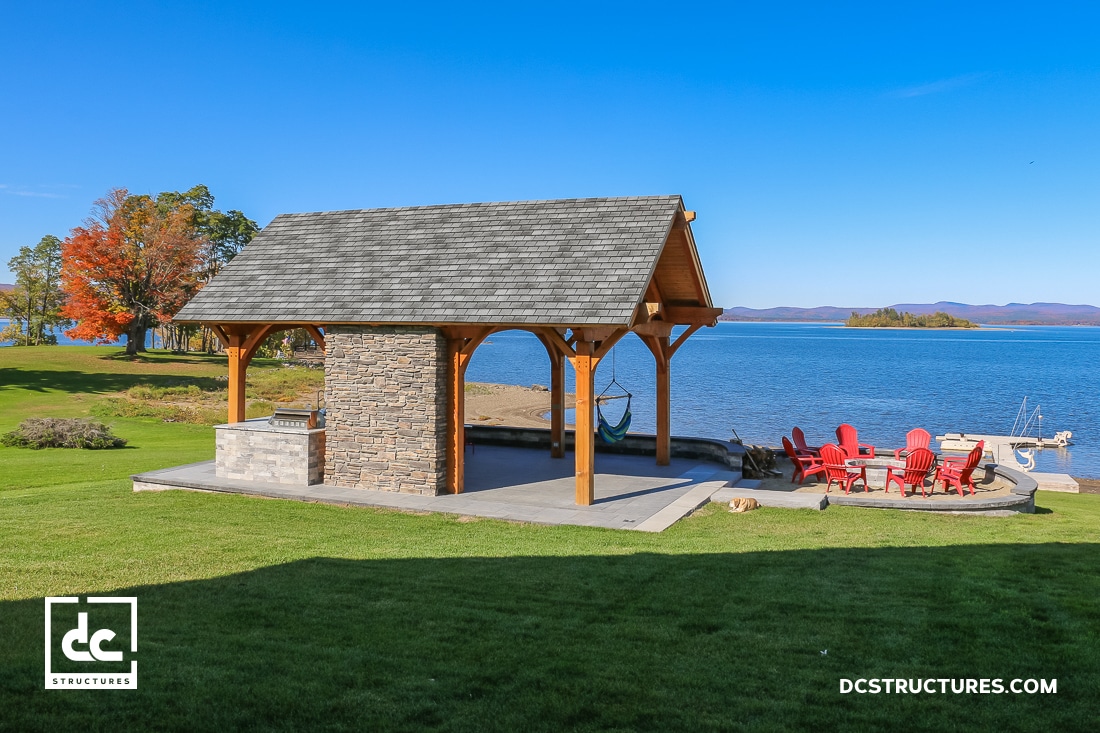

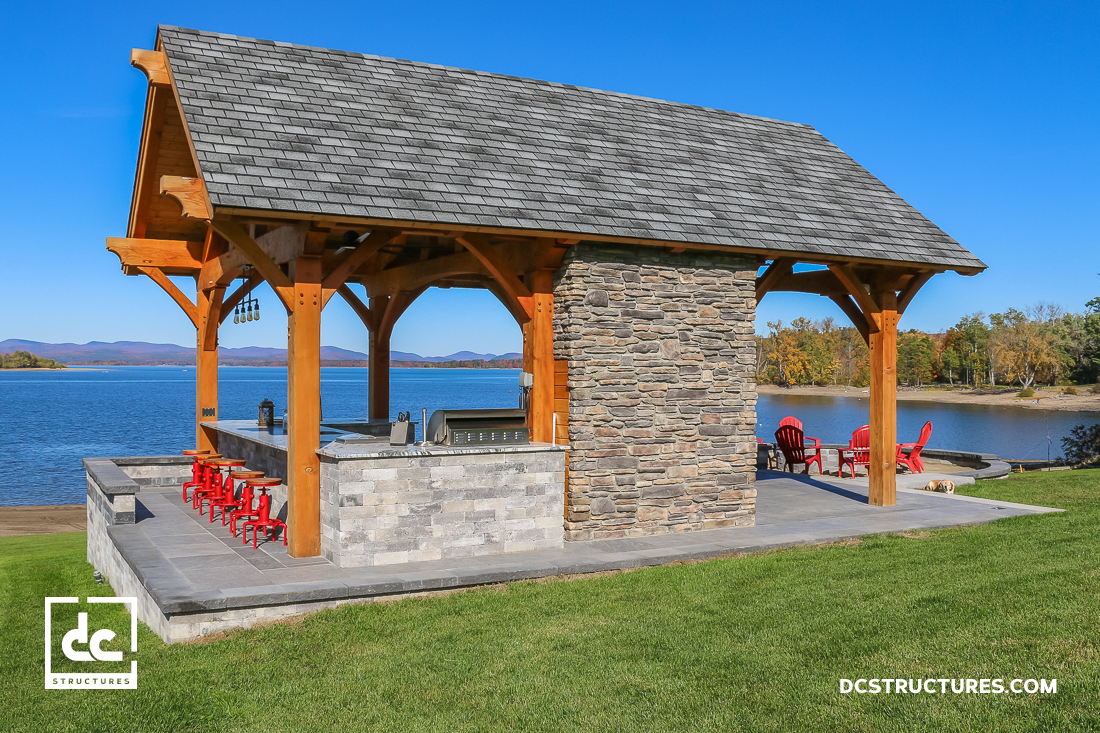

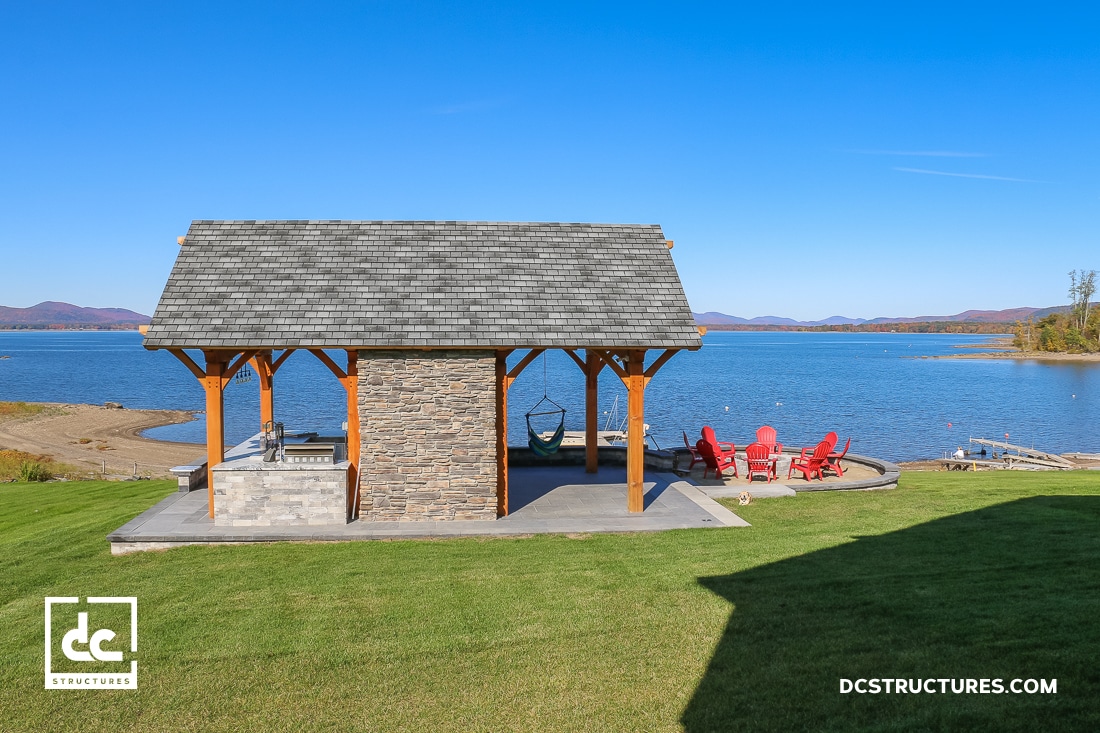

This beautiful backyard pavilion kit sits on a wonderful property looking out over Great Sacandaga Lake in upstate New York. The heavy timber framed structure features four 16′ queen post trusses, oversized 10″ x 10″ Douglas fir posts and 8″ x 14″ beams. The client turned this pavilion into a fully-functional entertainment area with a large kitchen, bar seating, fireplace, wide-screen TV, overhead fans and lighting.

PAVILION DETAILS:


16′ x 24′ PAVILION

  • 384 SQ. FT.
  • Queen Post Style
  • (4) 16′ Trusses
  • Concealed Knife Plates

STRUCTURAL DETAILS

  • 9/12 Roof Pitch
  • 10″ x 10″ Posts
  • 18′ 1″ Ridge Height
  • (20) Knee Braces
